Apigee의 알려진 문제

When the cachehit flow variable is used after the LookupCache policy, due to the way debug points are dispatched for asynchronous behavior, the LookupPolicy populates the DebugInfo object before the call back has executed, resulting in an error.

Workaround: Repeat the process (make second call) again right after the first call.

Setting PurgeChildEntries in the InvalidateCache policy should purge the KeyFragment element values only but clears the entire cache.

Workaround: Use the KeyValueMapOperations policy to iterate cache versioning and bypass the need for cache invalidation.

This can happen, for example, when concurrent runs of a CI/CD deployment pipeline occur using different revisions. To avoid this problem, avoid deploying API proxies or SharedFlows before the current deployment is complete.

Workaround: Avoid concurrent API proxy or SharedFlow deployments.

Edge API Analytics can sometimes contain duplicate data for API calls. In that case the counts shown for API calls in Edge API Analytics are higher than the comparable values shown in third-party analytics tools.

Workaround: Export the analytics data and use the gateway_flow_id field to de-duplicate the data.

• 포털에서 SmartDocs를 사용하여 사양 편집기를 사용하여 사양을 만들고 API를 게시하는 경우 Apigee Edge는 OpenAPI 사양 3.0을 지원하지만 일부 기능은 아직 지원되지 않습니다.

  예를 들어 다음의 OpenAPI 사양 3.0 기능이 아직 지원되지 않습니다.

  • 스키마 결합 및 확장을 위한 allOf 속성
  • 원격 참조

  OpenAPI 사양에서 지원되지 않는 기능을 참조하는 경우, 도구가 기능을 무시하지만 API 참조 문서는 계속 렌더링합니다. 다른 경우에는 지원되지 않는 기능이 API 참조 문서의 성공적인 렌더링을 방지하는 오류를 일으킵니다. 두 경우 모두 지원되지 않는 기능이 향후 출시 버전에서 지원될 때까지 사용되지 않도록 OpenAPI 사양을 수정해야 합니다.

  참고: API 참조 문서를 렌더링할 때 사양 편집기는 SmartDocs보다 제한이 적으므로 도구에 따라 결과가 다를 수 있습니다.

• 포털에서 이 API 사용해 보기를 사용하는 경우 OpenAPI 사양에서 consumes에 설정된 값에 관계없이 Accept 헤더가 application/json으로 설정됩니다.
• 138438484: 여러 서버는 지원되지 않습니다.

• 현재 여러 사용자의 동시 포털 업데이트(예: 페이지, 테마, CSS, 스크립트 수정)는 지원되지 않습니다.
• 포털에서 API 참조 문서 페이지를 삭제하면 다시 생성할 수 없습니다. API 제품을 삭제 및 다시 추가하고 API 참조 문서를 다시 생성해야 합니다.
• 콘텐츠 보안 정책을 구성할 때 변경사항이 완전히 적용되는 데 최대 15분이 걸릴 수 있습니다.
• 포털 테마를 맞춤설정할 때 변경사항이 완전히 적용되는 데 최대 5분이 걸릴 수 있습니다.

• 향후 출시 버전에서는 통합 포털에 검색이 통합될 예정입니다.

A vulnerability (CVE-2026-42945) was disclosed affecting the ngx_http_rewrite_module in NGINX. Security scanning tools may flag the NGINX binaries included with Apigee Edge for Private Cloud because this module is statically compiled into NGINX.

Impact on Apigee Edge for Private Cloud:

Apigee Edge for Private Cloud is not affected by this vulnerability in its default, shipped configuration. The exploitability of CVE-2026-42945 is dependent on specific NGINX configuration patterns, notably the use of the rewrite directive in a particular sequence. These patterns are not present in any standard Apigee Edge for Private Cloud NGINX configurations.

Action Required:

• For Default Apigee Edge for Private Cloud Configurations: No patches, upgrades, or operational changes are required. Scanner findings regarding CVE-2026-42945 can be treated as false positives for default installations. You can use the following text to document this exception in your vulnerability management system:

  CVE-2026-42945 — Accepted exception (false positive for Apigee Edge for Private Cloud). Apigee Edge for Private Cloud does not use the rewrite directive in any shipped NGINX configuration. The vulnerable code path in ngx_http_rewrite_module is configuration-gated and is not reachable in the default Apigee Edge for Private Cloud deployment.

• For Customized NGINX Configurations: If you have manually modified the NGINX configuration files within your Apigee Edge for Private Cloud installation (for example, under /opt/nginx), you should perform the following self-check to ensure your customizations have not inadvertently introduced the vulnerable pattern:
  1. Check for rewrite directive: On each NGINX node, run the command:

     sudo grep -rnI '^\s*rewrite\b' /opt/nginx

  2. Analyze Results:
     • If the command returns no output, your system is not affected.
     • If matches are found, review each instance. The vulnerability is present only if all the following conditions are met for a given block:
       • The rewrite directive is used.
       • It is immediately followed by another rewrite, if, or set directive within the same configuration block.
       • An unnamed PCRE capture group (for example, $1, $2, etc.) is used in the directives.
       • The replacement string in the directive contains a question mark (?).
  3. Mitigation (if vulnerable): If all the above conditions are true for any part of your custom configuration, mitigate by:
     • Removing the question mark (?) from the replacement string.
     • Using named PCRE capture groups instead of unnamed ones.
     • Re-evaluating the need for the chained directives.

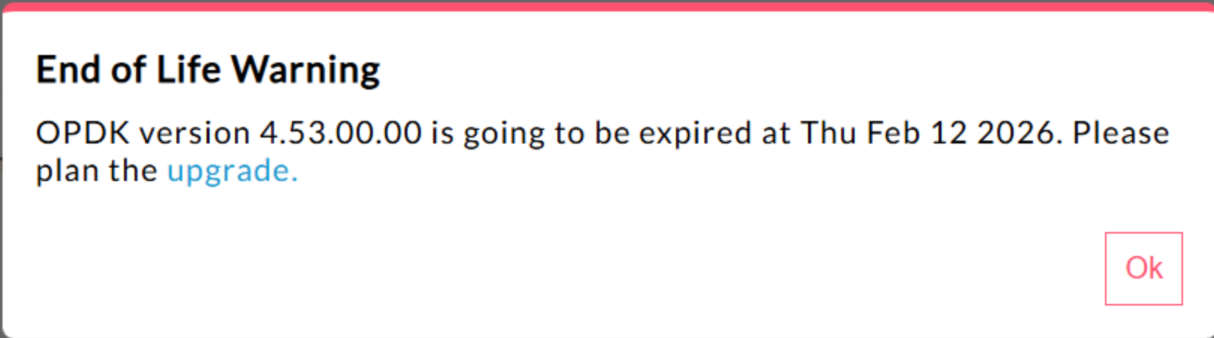

In Edge for Private Cloud 4.53.00 and later, the UI displays an "End of Life" (EOL) warning pop-up. This warning appears
repeatedly and cannot be prevented or reduced in frequency.

There is currently no method available for users to disable or reduce the frequency of this EOL warning.

Customer Java callouts that attempt to load the Bouncy Castle cryptography provider using the name "BC" might fail because the default provider has been changed to Bouncy Castle FIPS to support FIPS. The new provider name to use is "BCFIPS".

Customer Java callouts that attempt to load the Bouncy Castle cryptography provider using the name "BC" might fail because the default provider has been changed to Bouncy Castle FIPS to support FIPS. The new provider name to use is "BCFIPS".

This issue affects only those who are using MINT or have MINT enabled in Edge for Private Cloud installations.

Component affected: edge-message-processor

Issue: If you have monetization enabled and are installing 4.52.01 as a fresh install or upgrading from previous Private Cloud versions, you will encounter an issue with message processors. There will be a gradual increase in open thread count leading to resource exhaustion. The following exception is seen in edge-message-processor system.log:

Error injecting constructor, java.lang.OutOfMemoryError: unable to create new native thread

A Denial-of-Service (DoS) vulnerability was recently discovered in multiple implementations of the HTTP/2 protocol (CVE-2023-44487), including in Apigee Edge for Private Cloud. The vulnerability could lead to a DoS of Apigee API management functionality. For more details, see Apigee Security Bulletin GCP-2023-032.

The Edge for Private Cloud router and management server components are exposed to the internet and can potentially be vulnerable. Although HTTP/2 is enabled on the management port of other Edge-specific components of Edge for Private Cloud, none of those components are exposed to the internet. On non-Edge components, like Cassandra, Zookeeper and others, HTTP/2 is not enabled. We recommend that you take the following steps to address the Edge for Private Cloud vulnerability:

• Steps for Edge for Private Cloud versions 4.51.00.11 or newer
• Steps for Edge for Private Cloud versions older than 4.51.00.11

Follow these steps if you are using Edge Private Cloud versions 4.51.00.11 or newer:

1. Update the management server:

   1. On each management server node, open /opt/apigee/customer/application/management-server.properties
   2. Add this line to the properties file:

      conf_webserver_http2.enabled=false

   3. Restart the management server component:

      apigee-service edge-management-server restart

2. Update the message processor:

   1. On each message processor node, open /opt/apigee/customer/application/message-processor.properties
   2. Add this line to the properties file:

      conf_webserver_http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-message-processor restart

3. Update the router:

   1. On each router node, open /opt/apigee/customer/application/router.properties
   2. Add this line to the properties file:

      conf_webserver_http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-router restart

4. Update QPID:

   1. On each QPID node, open /opt/apigee/customer/application/qpid-server.properties
   2. Add this line to the properties file:

      conf_webserver_http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-qpid-server restart

5. Update Postgres:

   1. On each Postgres node, open /opt/apigee/customer/application/postgres-server.properties
   2. Add this line to the properties file:

      conf_webserver_http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-postgres-server restart

Follow these steps if you are using Edge for Private Cloud versions older than 4.51.00.11:

1. Update the management server:

   1. On each management server node, open /opt/apigee/customer/application/management-server.properties
   2. Add the following two lines to the properties file:

      conf_webserver_http2.enabled=false
      conf/webserver.properties+http2.enabled=false

   3. Restart the management server component:

      apigee-service edge-management-server restart

2. Update the message processor:

   1. On each message processor node, open /opt/apigee/customer/application/message-processor.properties
   2. Add the following two lines to the properties file:

      conf_webserver_http2.enabled=false
      conf/webserver.properties+http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-message-processor restart

3. Update the router:

   1. On each router node, open /opt/apigee/customer/application/router.properties
   2. Add the following two lines to the properties file:

      conf_webserver_http2.enabled=false
      conf/webserver.properties+http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-router restart

4. Update QPID:

   1. On each QPID node, open /opt/apigee/customer/application/qpid-server.properties
   2. Add the following two lines to the properties file:

      conf_webserver_http2.enabled=false
      conf/webserver.properties+http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-qpid-server restart

5. Update Postgres:

   1. On each Postgres node, open /opt/apigee/customer/application/postgres-server.properties
   2. Add the following two lines to the properties file:

      conf_webserver_http2.enabled=false
      conf/webserver.properties+http2.enabled=false

   3. Restart the message processor component:

      apigee-service edge-postgres-server restart

Apigee-postgresql is having issues with upgrading from Edge for Private Cloud version 4.50 or 4.51 to version 4.52. The issues mainly occur when the number of tables is greater than 500.

You can check the total number of tables in Postgres by running the SQL query below:

select count(*) from information_schema.tables

Workaround: When Updating Apigee Edge 4.50.00 or 4.51.00 to 4.52.00, be sure to perform the preliminary step before upgrading Apigee-postgresql.

149245401: LDAP connection pool settings for JNDI configured through the LDAP resource are not reflected, and JNDI defaults cause single-use connections each time. As a result, connections are being opened and closed each time for single use, creating a large number of connections per hour to the LDAP server.

Workaround:

In order to change the LDAP connection pool properties, do the following steps to set a global change across all LDAP policies.

1. Create a configuration properties file if it does not already exist:

   /opt/apigee/customer/application/message-processor.properties

2. Add the following to the file (replace values of Java Naming and Directory Interface (JNDI) properties based on your LDAP resource configuration requirement).

   bin_setenv_ext_jvm_opts="-Dcom.sun.jndi.ldap.connect.pool.maxsize=20
   -Dcom.sun.jndi.ldap.connect.pool.prefsize=2
   -Dcom.sun.jndi.ldap.connect.pool.initsize=2
   -Dcom.sun.jndi.ldap.connect.pool.timeout=120000
   -Dcom.sun.jndi.ldap.connect.pool.protocol=ssl"

3. Make sure the file /opt/apigee/customer/application/message-processor.properties is owned by apigee:apigee.
4. Restart each message processor.

To verify that your connection pool JNDI properties are taking effect, you can perform a tcpdump to observe the behavior of the LDAP connection pool over time.

139051927: High proxy processing latencies found in the Message Processor are affecting all API Proxies. Symptoms include 200-300ms delays in processing times over normal API response times and can occur randomly even with low TPS. This can occur when than more than 50 target servers in which a message processor makes connections.

Root cause: Message processors keep a cache that maps target server URL to HTTPClient object for outgoing connections to target servers. By default this setting is set to 50 which may be too low for most deployments. When a deployment has multiple org/env combinations in a setup, and have a large number of target servers that exceed 50 altogether, the target server URLs keep getting evicted from cache, causing latencies.

Validation: To determine if target server URL eviction is causing the latency problem, search the Message Processor system.logs for keyword "onEvict" or "Eviction". Their presence in the logs indicate that target server URLs are getting evicted from the HTTPClient cache because the cache size is too small.

Workaround: For Edge for Private Cloud versions 19.01 and 19.06, you can edit and configure the HTTPClient cache, /opt/apigee/customer/application/message-processor.properties:

conf/http.properties+HTTPClient.dynamic.cache.elements.size=500

Then restart the message processor. Make the same changes for all message processors.

The value 500 is an example. The optimal value for your setup should be greater than the number of target servers that the message processor would connect to. There are no side effects from setting this property higher, and the only affect would be an improved message processor proxy request processing times.

Note: Edge for Private Cloud version 50.00 has the default setting of 500.

157933959: Concurrent inserts and updates to the same key value map (KVM) scoped to the organization or environment level causes inconsistent data and lost updates.

Note: This limitation only applies to Edge for Private Cloud. Edge for Public Cloud and Hybrid do not have this limitation.

For a workaround in Edge for Private Cloud, create the KVM at the apiproxy scope.
